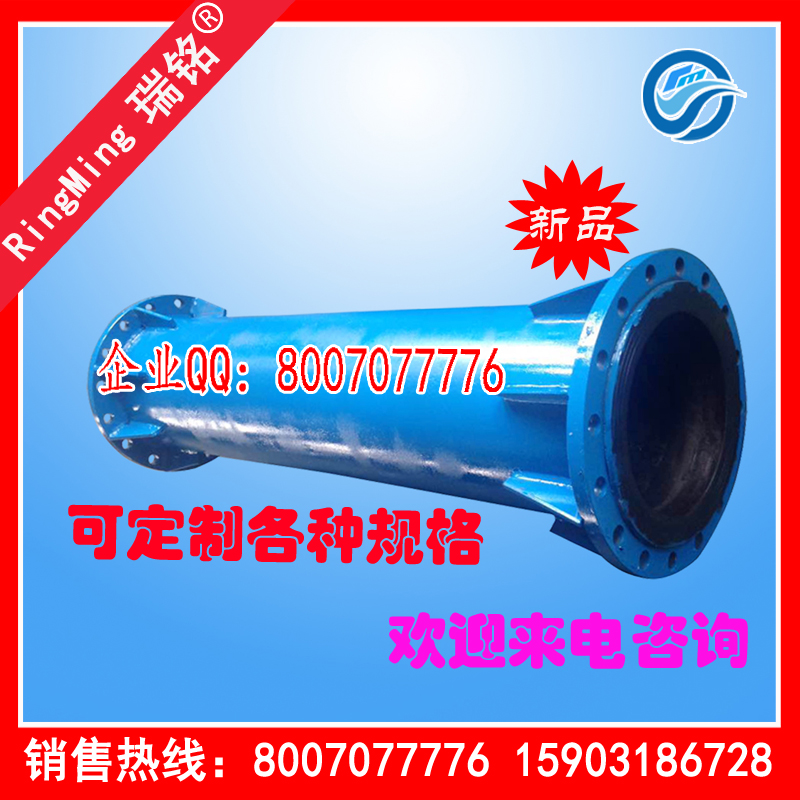

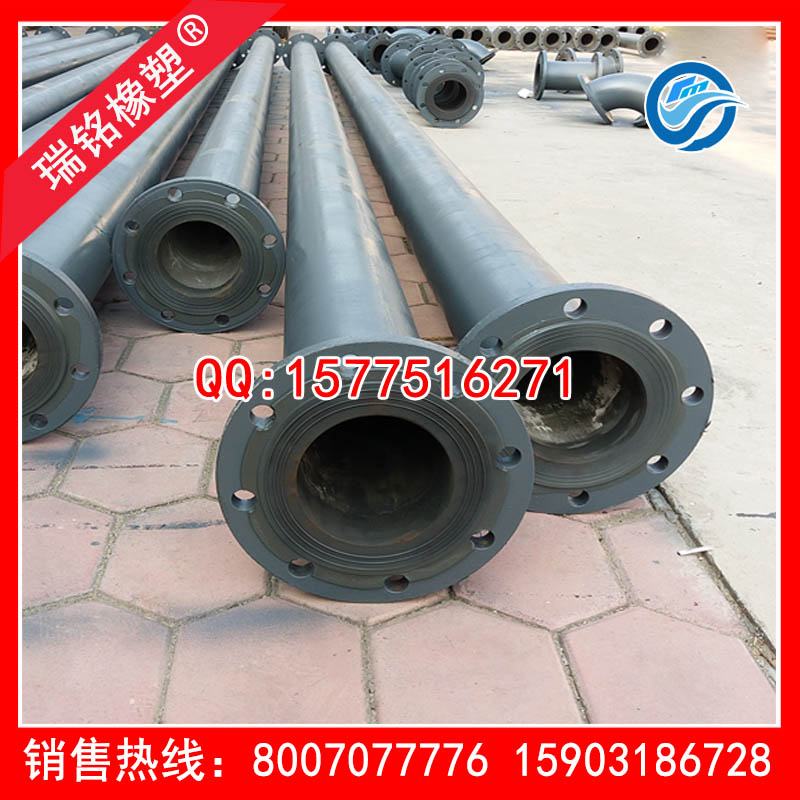

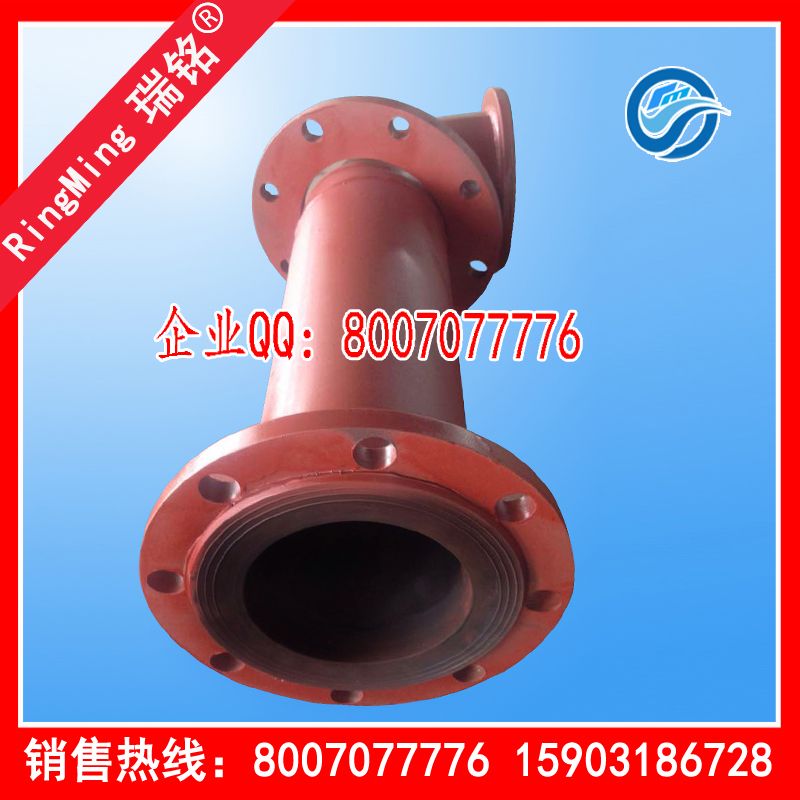

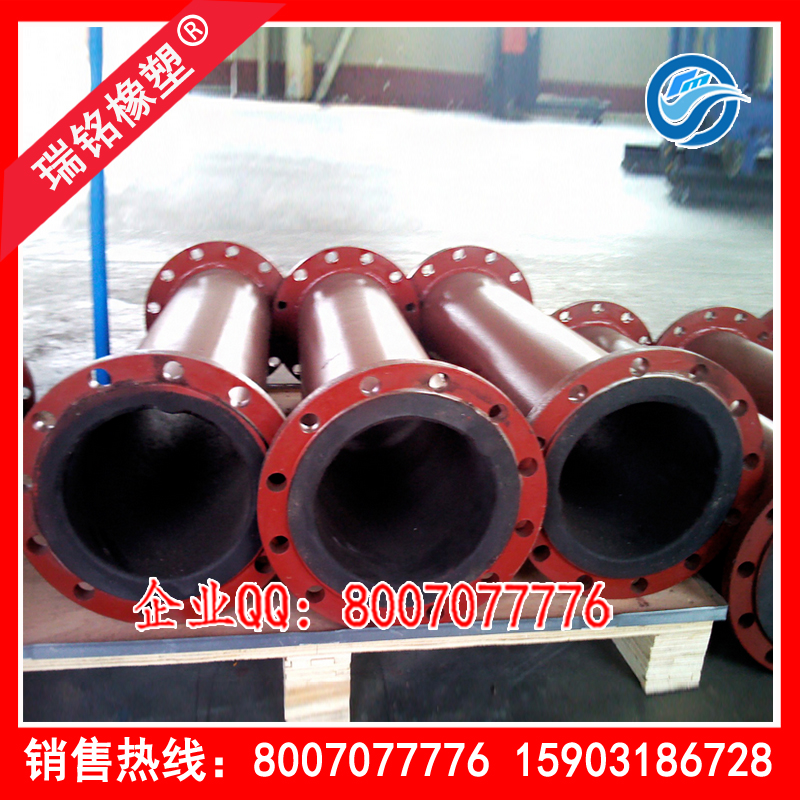

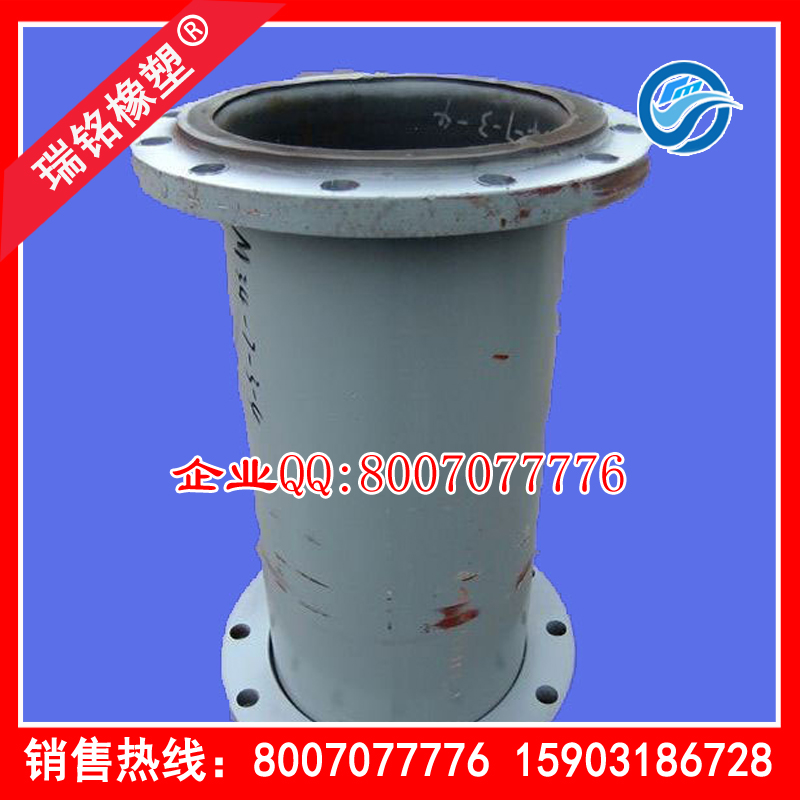

襯膠管道（Rubber Lined Pipes），是一種外部以鋼或者硬質結構為管道骨架，內襯耐磨、防腐以及耐高溫的橡膠作為襯里層，通過橡膠自身物理和化學性能從而降低了管路輸送介質對外部結構的作用如沖擊力、腐蝕等，其由于橡膠的緩沖作用，大大延長了管路的使用壽命，降低使用者的成本。
|

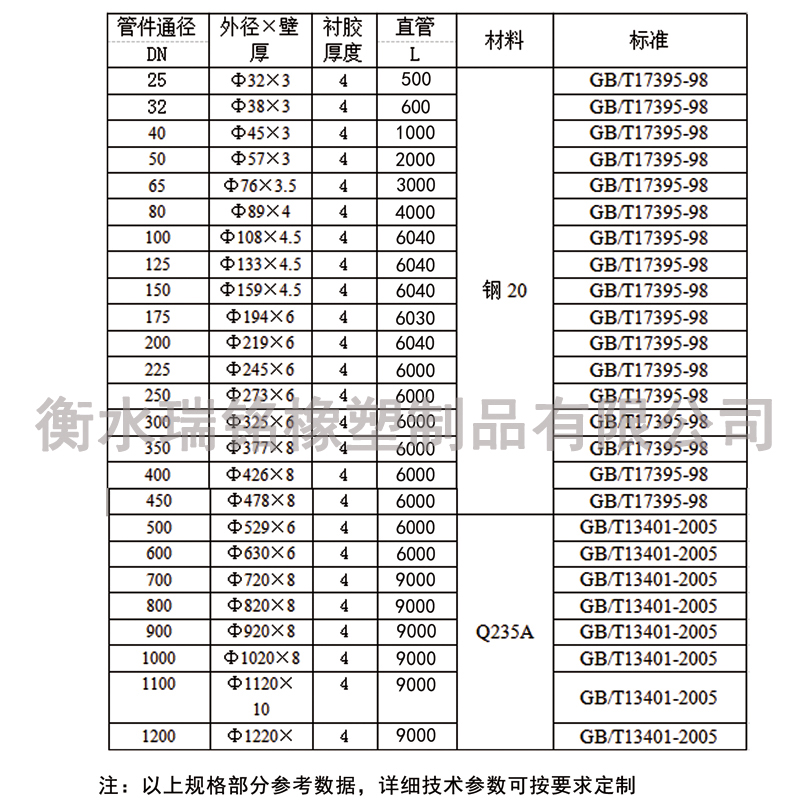

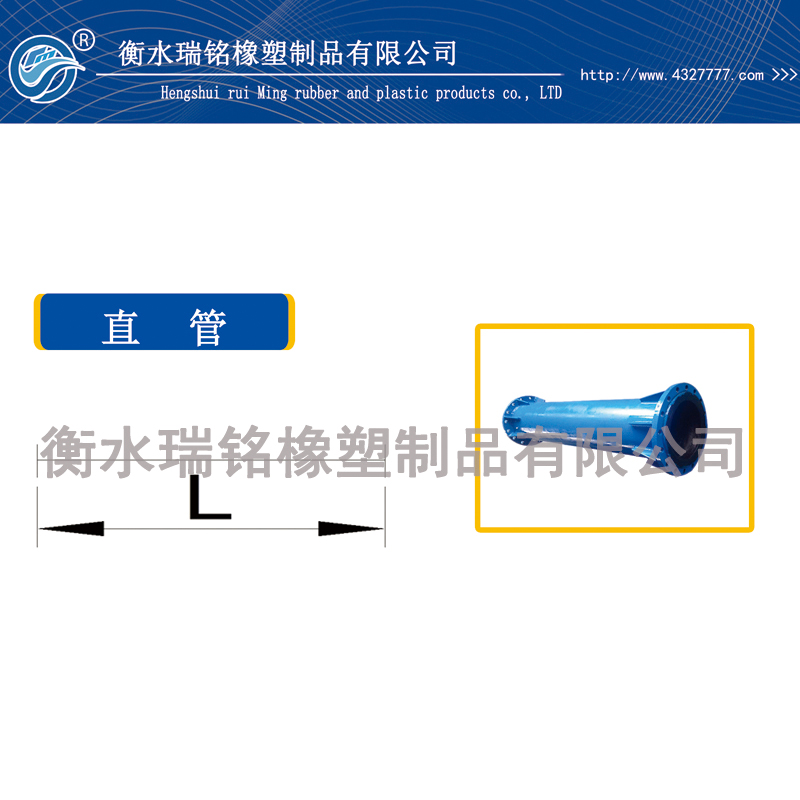

直管段 |
|
|||||
|
|
|
|
|
|
|
|
|
管件通徑 |
外徑×壁厚 |
襯膠厚度 |
直管 |
材料 |
標準 |
|
|
DN |
L |
|
||||
|
25 |
Φ32×3 |
4 |
500 |
鋼20 |
GB/T17395-98 |
|
|
32 |
Φ38×3 |
4 |
600 |
GB/T17395-98 |
|
|
|
40 |
Φ45×3 |
4 |
1000 |
GB/T17395-98 |
|
|
|
50 |
Φ57×3 |
4 |
2000 |
GB/T17395-98 |
|
|
|
65 |
Φ76×3.5 |
4 |
3000 |
GB/T17395-98 |
|
|
|
80 |
Φ89×4 |
4 |
4000 |
GB/T17395-98 |
|
|
|
100 |
Φ108×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
125 |
Φ133×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
150 |
Φ159×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
175 |
Φ194×6 |
4 |
6030 |
GB/T17395-98 |
|
|
|
200 |
Φ219×6 |
4 |
6040 |
GB/T17395-98 |
|
|
|
225 |
Φ245×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
250 |
Φ273×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
300 |
Φ325×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
350 |
Φ377×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
400 |
Φ426×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
450 |
Φ478×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
500 |
Φ529×6 |
4 |
6000 |
Q235A |
GB/T13401-2005 |
|
|
600 |
Φ630×6 |
4 |
6000 |
GB/T13401-2005 |
|
|
|
700 |
Φ720×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
800 |
Φ820×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
900 |
Φ920×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1000 |
Φ1020×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1100 |
Φ1120×10 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1200 |
Φ1220×10 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
直管段 |
|
|||||
|
|
|
|
|
|
|
|
|
管件通徑 |
外徑×壁厚 |
襯膠厚度 |
直管 |
材料 |
標準 |
|
|
DN |
L |
|
||||
|
25 |
Φ32×3 |
4 |
500 |
鋼20 |
GB/T17395-98 |
|
|
32 |
Φ38×3 |
4 |
600 |
GB/T17395-98 |
|
|
|
40 |
Φ45×3 |
4 |
1000 |
GB/T17395-98 |
|
|
|
50 |
Φ57×3 |
4 |
2000 |
GB/T17395-98 |
|
|
|
65 |
Φ76×3.5 |
4 |
3000 |
GB/T17395-98 |
|
|
|
80 |
Φ89×4 |
4 |
4000 |
GB/T17395-98 |
|
|
|
100 |
Φ108×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
125 |
Φ133×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
150 |
Φ159×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
175 |
Φ194×6 |
4 |
6030 |
GB/T17395-98 |
|
|
|
200 |
Φ219×6 |
4 |
6040 |
GB/T17395-98 |
|
|
|
225 |
Φ245×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
250 |
Φ273×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
300 |
Φ325×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
350 |
Φ377×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
400 |
Φ426×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
450 |
Φ478×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
500 |
Φ529×6 |
4 |
6000 |
Q235A |
GB/T13401-2005 |
|
|
600 |
Φ630×6 |
4 |
6000 |
GB/T13401-2005 |
|
|
|
700 |
Φ720×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
800 |
Φ820×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
900 |
Φ920×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1000 |
Φ1020×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1100 |
Φ1120×10 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1200 |
Φ1220×10 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
直管段 |
|
|||||
|
|
|
|
|
|
|
|
|
管件通徑 |
外徑×壁厚 |
襯膠厚度 |
直管 |
材料 |
標準 |
|
|
DN |
L |
|
||||
|
25 |
Φ32×3 |
4 |
500 |
鋼20 |
GB/T17395-98 |
|
|
32 |
Φ38×3 |
4 |
600 |
GB/T17395-98 |
|
|
|
40 |
Φ45×3 |
4 |
1000 |
GB/T17395-98 |
|
|
|
50 |
Φ57×3 |
4 |
2000 |
GB/T17395-98 |
|
|
|
65 |
Φ76×3.5 |
4 |
3000 |
GB/T17395-98 |
|
|
|
80 |
Φ89×4 |
4 |
4000 |
GB/T17395-98 |
|
|
|
100 |
Φ108×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
125 |
Φ133×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
150 |
Φ159×4.5 |
4 |
6040 |
GB/T17395-98 |
|
|
|
175 |
Φ194×6 |
4 |
6030 |
GB/T17395-98 |
|
|
|
200 |
Φ219×6 |
4 |
6040 |
GB/T17395-98 |
|
|
|
225 |
Φ245×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
250 |
Φ273×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
300 |
Φ325×6 |
4 |
6000 |
GB/T17395-98 |
|
|
|
350 |
Φ377×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
400 |
Φ426×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
450 |
Φ478×8 |
4 |
6000 |
GB/T17395-98 |
|
|
|
500 |
Φ529×6 |
4 |
6000 |
Q235A |
GB/T13401-2005 |
|
|
600 |
Φ630×6 |
4 |
6000 |
GB/T13401-2005 |
|
|
|
700 |
Φ720×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
800 |
Φ820×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
900 |
Φ920×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1000 |
Φ1020×8 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1100 |
Φ1120×10 |
4 |
9000 |
GB/T13401-2005 |
|
|
|
1200 |
Φ1220×10 |
4 |
9000 |
GB/T13401-2005 |
|
|
